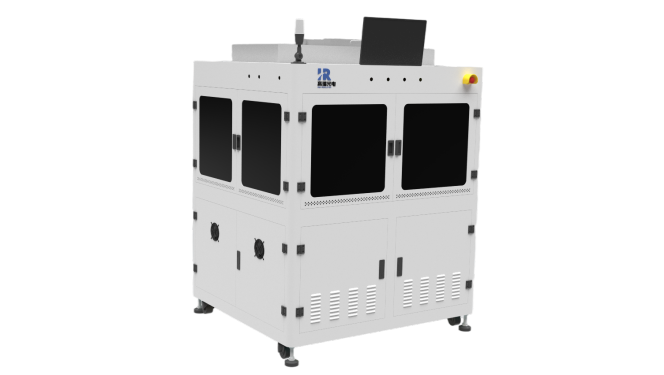

Automated outer diameter detection equipment for optical element

The automatic detection equipment for lens outer diameter is mainly used to efficiently and accurately detect the outer diameter size of optical lenses. It combines various technologies such as machine vision, image processing, and laser measurement to achieve automated and non-contact measurement of lens outer diameter.

Inquire Now Next Product

Workflow：

-The material tray is placed on both sides of the testing station and can transport both products waiting for testing and those that have already been tested simultaneously;

-The robotic arm automatically sucks the lens to the measurement position;

-Measure the outer diameter of the lens through optical non-contact sensors, and classify the measurement results according to preset values, such as A, B, and NG products;

-The robotic arm places it into different material trays based on the classification results.

Product Features：

- Adopting non-contact measurement method to avoid the damage and errors that may be caused by traditional mechanical measurement, ensuring the accuracy and reliability of the measurement;

- Using high-precision sensors and image processing algorithms, accurate measurement of the outer diameter size of the lens can be achieved;

- Real time display of tray status, automatic statistical data analysis, and report generation;

- Reserved MES system interface for intelligent monitoring of work information.

Technical Specifications:

Device model	JJ-SXB-01	JJ-LM-01
Detection Mode	Non contact type	Non contact type
Glass Ball Specification	±1.5μm	±1.5μm
UPH^①	600	1200
Lens specifications	Ф5-20㎜	Ф10-20㎜
Device weight	500KG	1000KG
Overall machine size	1400mm(L) * 1300mm(W) * 1700mm(H)	1400mm(L) * 1100mm(W) * 1700mm(H)
Operating voltage	AC220V/50HZ	AC220V/50HZ
Working air pressure	0.5MPa~0.7MPa	0.5MPa~0.7MPa
Rated power	2.3K	1.8KW
Ambient temperature	10-40℃	10-40℃
Ambient humidity	≤80% No condensation	≤80% No condensation
