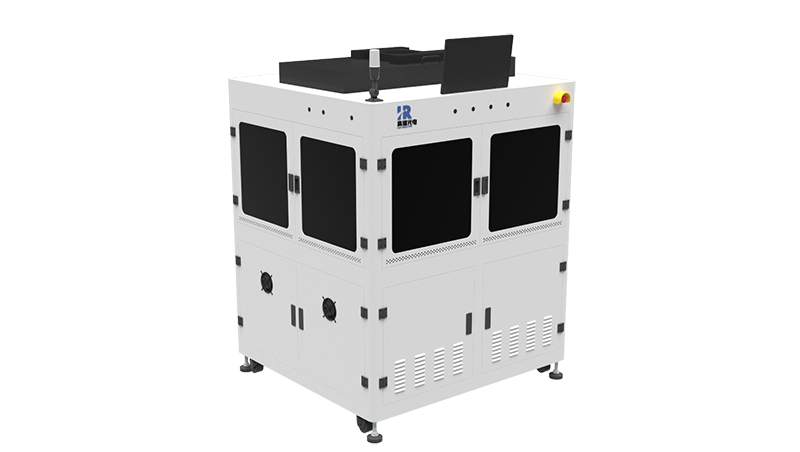

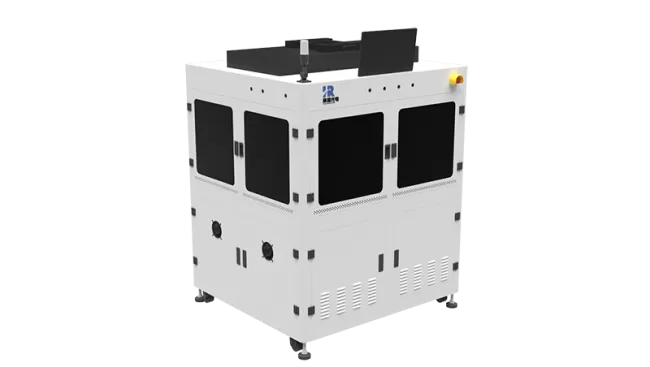

Automated appearance inspection equipment for optical lens assembly

The automatic inspection equipment for lens appearance is an efficient and accurate automated inspection device, mainly used for comprehensive inspection of lens appearance to ensure the quality and performance of lens products. This device combines advanced machine vision technology, image processing algorithms, and automated control systems to achieve fast, non-contact detection of lens appearance.

Inquire Now Next Product

Workflow：

-The test lens is loaded into the material bin and automatically grasped by the robotic arm;

- Use optical non-contact sensors to detect whether there are dirt or defects on each lens and the appearance of the lens, and perform intelligent image analysis;

- The measurement results are automatically classified according to the customer's pre-set values, such as OK and NG products. The robotic arm sorts the lenses into different trays based on the analysis results.

Product Features：

-Adopting optical non-contact detection method to avoid damaging the lens;

-Using high-precision sensors and AI processing algorithms, it is possible to achieve precise recognition of lens appearance defects;

-The software supports path planning for various shaped material trays and multi-level classification of measurement results;

-It has a user-friendly interface and easy to maintain design, making it convenient for users to integrate and use.

Technical Specifications:

Device model	JTJ-B-01	JTJ-SZP-01
Detection Mode	Machine Vision + AI Recognition	Machine Vision + AI Recognition
Loading and unloading methods	workbin	workbin
UPH^①	600	600
Lens specifications	Ф20㎜，Height24.55mm	Ф20㎜，Height24.55mm
Device weight	1000KG	1650KG
Overall machine size	1400mm(L) * 1300mm(W) * 1700mm(H)	2250mm(L) * 1150mm(W) * 1800mm(H)
Operating voltage	AC220V/50HZ	AC220V/50HZ
Working air pressure	0.5MPa~0.7MPa	0.5MPa~0.7MPa
Rated power	5.5KW	5.5KW
Ambient temperature	10-40℃	10-40℃
Ambient humidity	≤80% No condensation	≤80% No condensation
