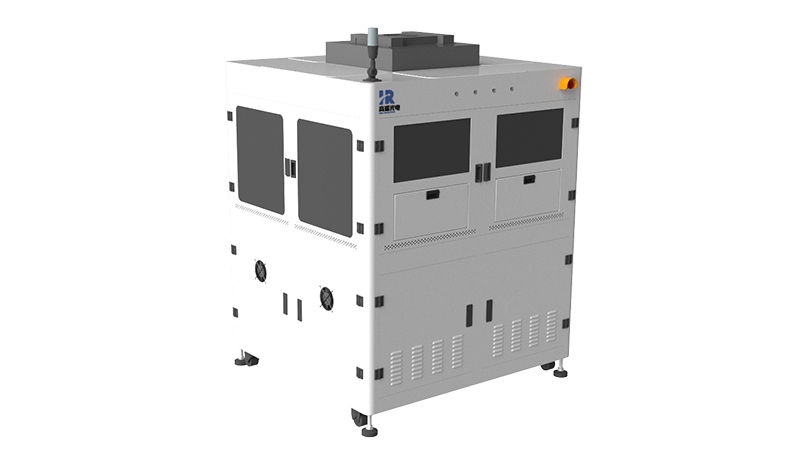

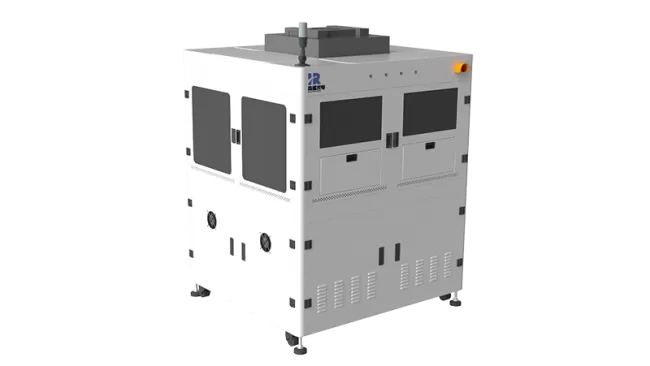

Automated appearance inspection equipment for optical element

The intelligent detection equipment for lens appearance adopts machine vision+AI recognition technology, using optical non-contact detection method to replace traditional manual detection and achieve high-speed automated detection of product appearance.

Inquire Now Next Product

Workflow：

-The test lens is manually loaded onto the material tray;

-The robotic arm automatically sucks the lens to the measurement position;

-The appearance of the lens is measured using an optical non-contact sensor, and the measurement results are classified according to preset values, such as A-grade, B-grade, and NG-grade;

-The robotic arm places it into different trays based on the classification results.

Product Features：

-Adopting optical non-contact detection method, there is no damage to the surface of the lens;

-Fast detection speed, high accuracy and stability of measurement results;

-The software supports path planning for various shaped material trays and multi-level classification of measurement results;

-The equipment runs stably, with simple and fast operation, saving labor costs.

Technical Specifications:

Device model	JWD-SL-01	JWD-MZ-01	JWD-SZP-01
Detection Mode	Non contact type	Non contact type	Non contact type
Detection Type	Plastic Lens	Hat shaped len	Lens
UPH^①	16000	1200	1500-1800
Lens specifications	Ф4-18㎜，H<10mm	Ф10-20㎜，H<25m	Ф10~32㎜，H<10mm
Device weight	1000-1400KG	900-1200KG	1550KG
Overall machine size	1400mm(L) * 1300mm(W) * 1700mm(H)	1400mm(L) * 1300mm(W) * 1700mm(H)	2000mm(L)1300mm(W)1700mm(H)
Operating voltage	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Working air pressure	0.5MPa~0.7MPa	0.5MPa~0.7MPa	0.5MPa~0.7MPa
Rated power	5K	8.0~10.0KW	4.5KW
Ambient temperature	10-40℃	10-40℃	10-40℃
Ambient humidity	≤80% No condensation	≤80% No condensation	≤80% No condensation
