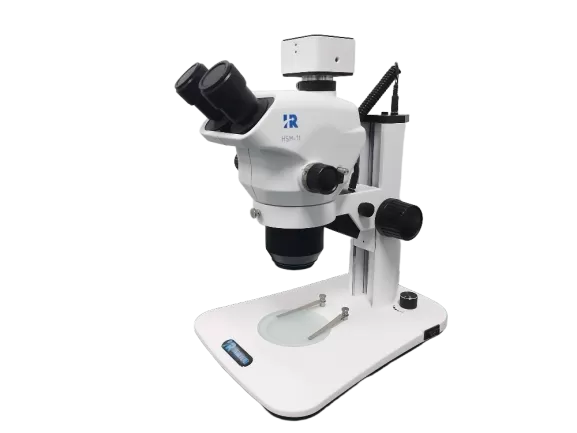

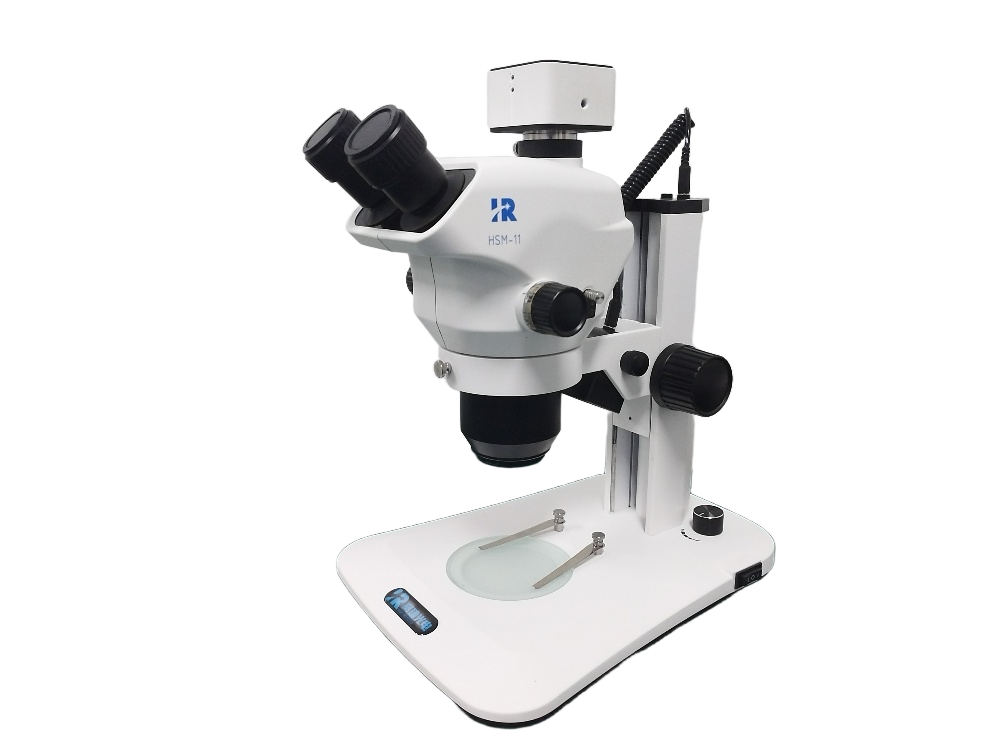

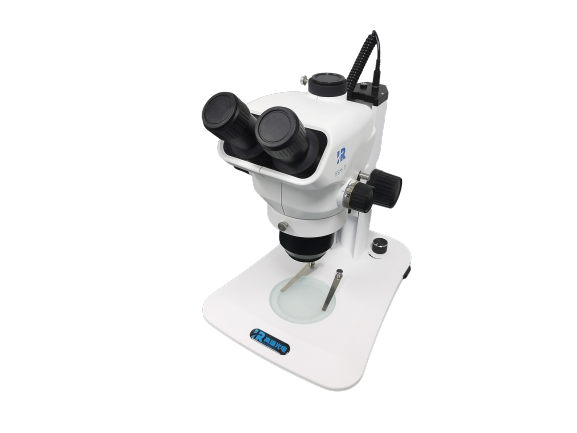

Digital StereoMicroscope HSM-11T

HSM-11T is a high-performance continuous zoom stereo microscope with wide zoom ratio (11:1) and long working distance (110mm) designed with Greenough optical system.

Inquire Now Next Product

Product Description:

HSM-11T is a high-performance continuous zoom stereo microscope with wide zoom ratio (11:1) and long working distance (110mm) designed with Greenough optical system. It is the perfect choice for both low-magnification (0.6X) macroscopic observation and close-up observation with a clear high-magnification (6.6X) field of view.

The products can provide customized product packages equipped with LED lighting and digital cameras according to different requirements of scientific research, experiment, teaching or industrial inspection.

Performance Characteristics：

● High resolution and clarity, capable of clearly displaying sample details and features;

● Utilizes non-contact optical detection methods to better preserve the integrity of samples;

● Excellent visualization for easier observation and inspection;

● Enables image processing and analysis, providing more reliable data support for research and applications;

● Widely applicable in research fields such as biology, materials science, medicine, and environmental science.

Technical Specifications of Stereo Microscope:

Specifications	Paraeter
Model Type	HSM-11T
Optical System	Greenough
Magnification	6-66X（Standard）
Zoom Radio	11:1
System Resolution	Horizontal：3 μm
Observation Tube	45° Inclined binocular viewing tube, Interpupillary distance adjustment 55-75 mm
Observation Tube	45° Inclined trinocular viewing tube, Interpupillary distance adjustment 55-75 mm
Eyepiece	High eye point WF10X, Φ23mm
Objective Lens	0.6-6.6X Continuous zoom objective
Working Distance	110 mm
Auxiliary Objective （Optional）	0.5X, Magnification 3.0-33X, Working distance 165mm
	0.7X, Magnification 4.2-46.2X, Working distance 120mm
	1.5X, Magnification 9.0-99X, Working distance 45mm
	2 X, Magnification 12-132X, Working distance 30mm
Table diameter	100mm
Light Source （Intensity adjustable）	Upper Lighting, Ring LED 5W Side Lighting, LED 5W Under Lighting, LEDBacklight 5W
Camera Port	C Interface
Overall Size (WxLxH)	380 X 260 X 450mm
